Inertial Measurement Unit
Feature of TAMAGAWA
TAMAGAWA SEIKI offers a complete line of MEMS-based IMU,
which incorporates our unique technology of gyroscopes or calculation algorisms.
The feature of products are compact size and accuracy.
The upper models are equipped with Kalman Filter based algorisms
which is able to estimate the self-position in GNSS-denied environment.
We provide the best option for customer’s usage.

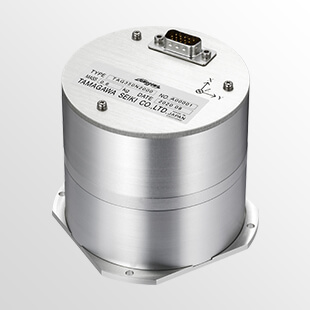

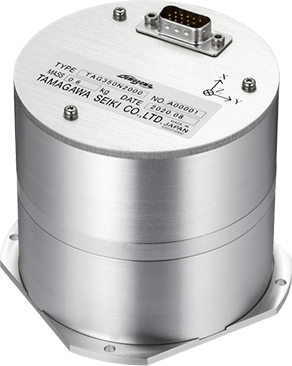

FOG & MEMS combined IMU incorporates 3-axis gyro (i-FOG for Z axis, MEMS gyro for X and Y axis) and accelerometers, which which measure angular velocity and acceleration. In addition, attitude (roll & pitch) and heading (yaw) is calculated. An external GNSS module is connected to IMU; with position and speed data, IMU can be used as GNSS / INS / VS navigation.
FOG & MEMS combined IMU incorporates FOG & MEMS, so it can narrow the huge gap between MEMS IMU and FOG IMU.

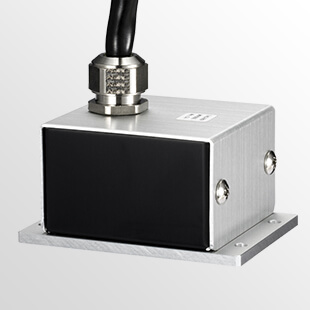

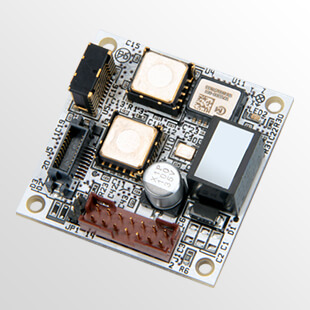

Power Circuit Board type is multi-functional IMU, which enables to perform EKF based dead-reckoning.

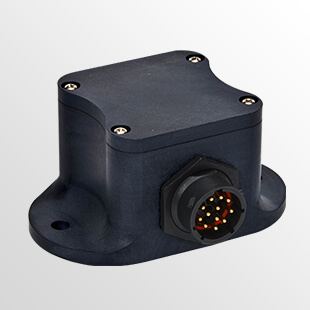

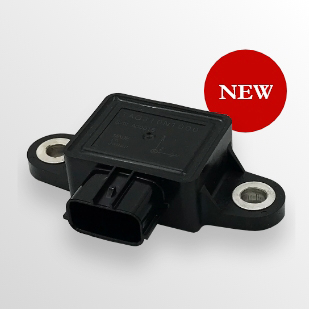

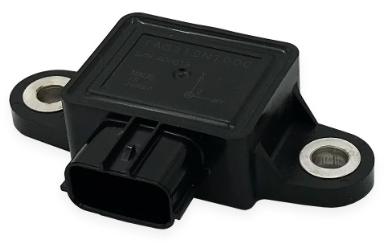

The waterproof case is IP65 compliant, M6 mounting, wire diameter 0.5sq, which are designed for construction machinery or agricultural machinery. It has the same functionality as PCB type.
The features of each product is introduced in movie. It should be easy-to-understand. Please see from here
