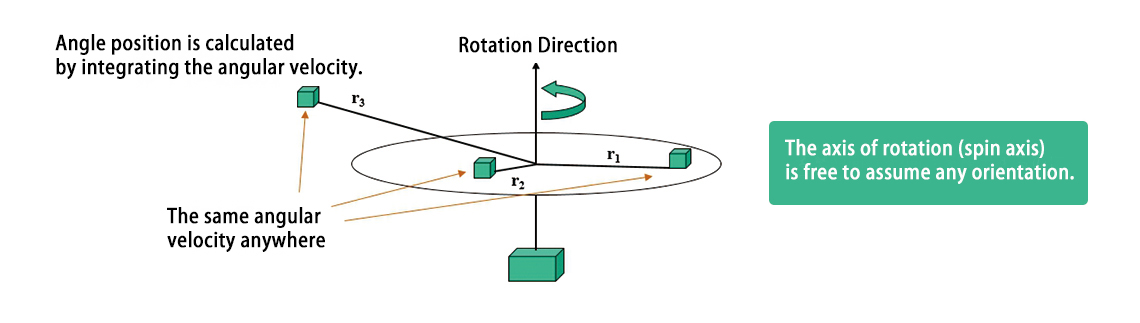

What is Gyro Sensor?

  • Gyro sensor detects an angular velocity per unit time.
  • It is also known as Gyroscope or (Angular) Rate Sensor.
  • Accuracy is expressed in unit of “°g/s” or “°/h”.
  • Angle position is calculated by integrating the angular velocity.
What is MEMS GYRO Sensor?

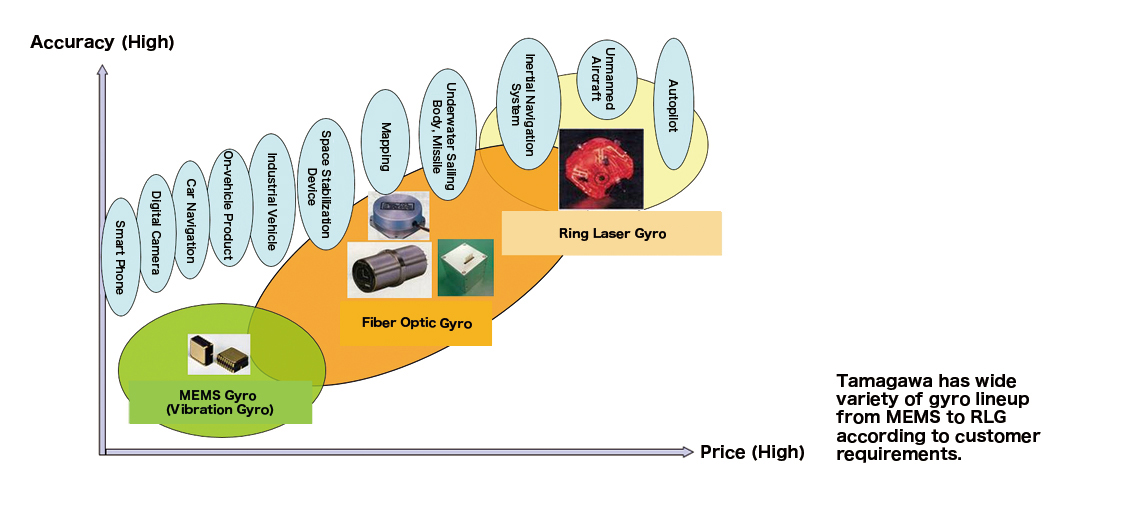

Gyro Sensor Line-up

Gyro Sensor Line-up

Principle of Gyro

Principle When the angular velocity is applied to a mass with a speed, the Coriolis force occurs in the direction at a right angle to both speed direction and rotation axis.

Our MEMS gyro vibrates the element in the shape of a tuning fork and detects the electricity produced by change of vibration mode by Coriolis force applied from rotational motion with the electrode which is placed on the sensor element.

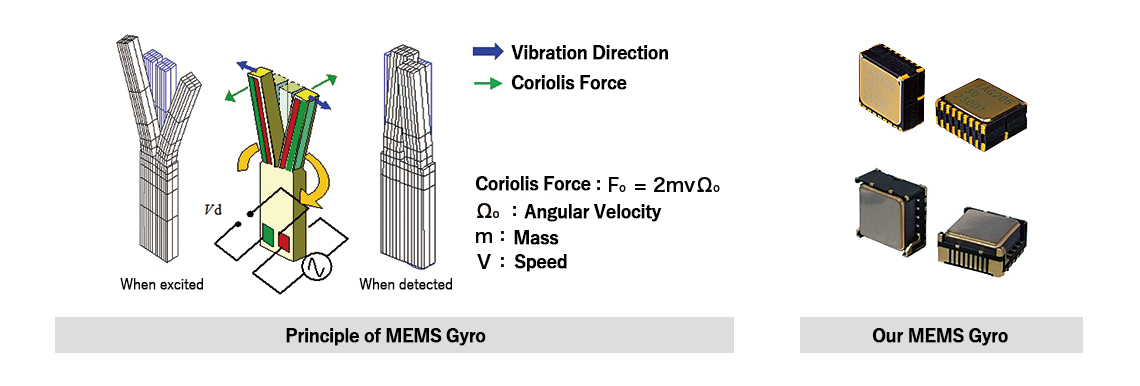

Principle of MEMS Gyro

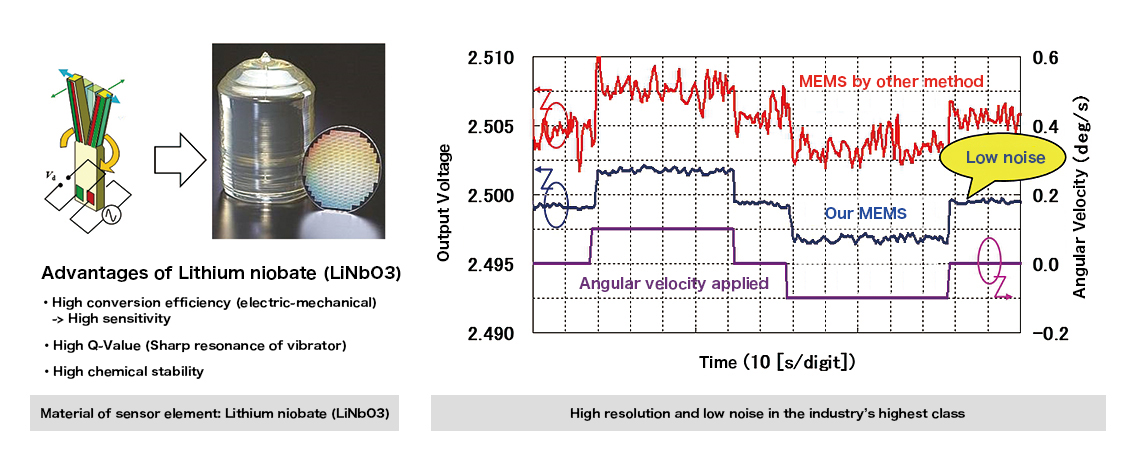

Features of our MEMS Gyro

The material of our MEMS gyro sensor element is Lithium niobate (LiNbO3).
Small size but high resolution and low noise in the industry’s highest class because of higher conversion efficiency than other method

Features of our MEMS gyro

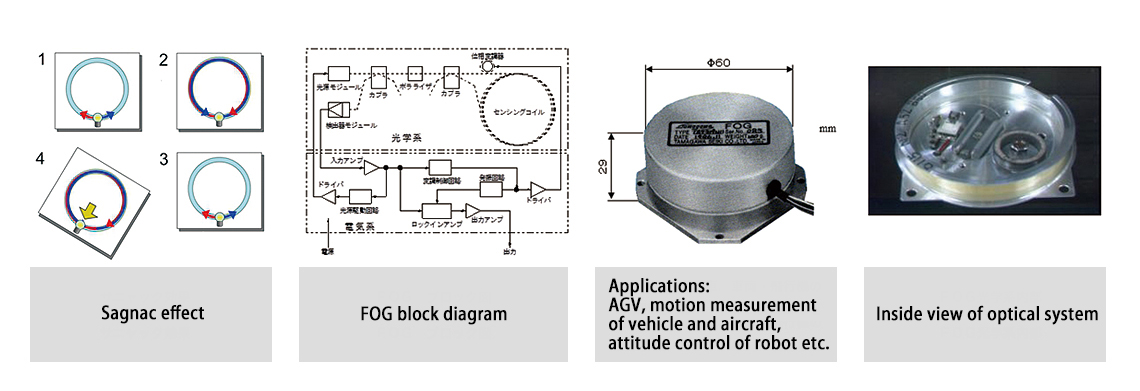

Principle A fiber optic gyroscope (FOG) detects the changes in orientation using the interference of light, which is created by two beams injected into the same fiber in opposite directions. The angular velocity is translated as the pattern of interference which is measured.
Principle of FOG (Fiber Optic Gyro )

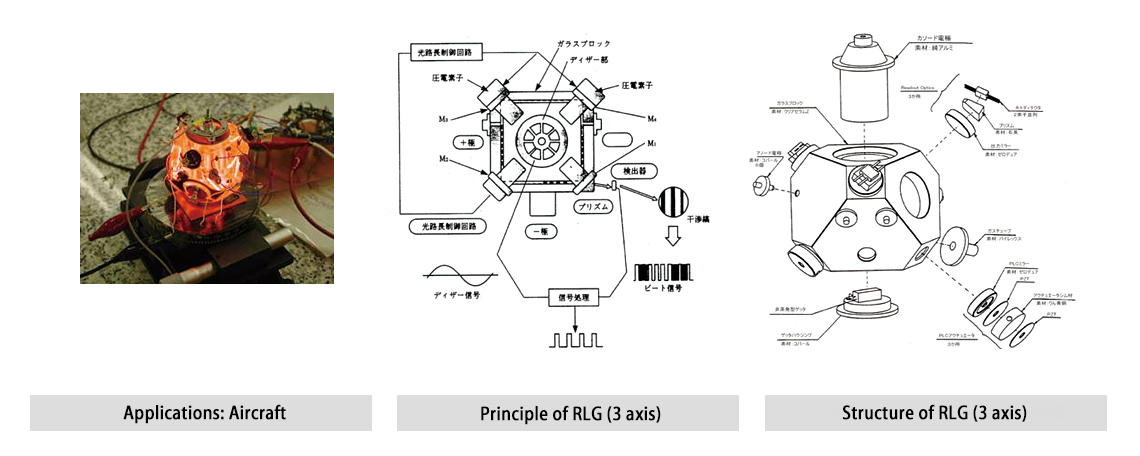

Principle A ring laser gyro (RLG) consists of a optical resonator, laser mirror & narrow glass tubule, where two laser beam are generated in CW and CCW by discharge of He-Ne. When the angular velocity is applied, a displacement of frequency of laser beam is made on a principle of Sagnac effect. A ring laser gyro (RLG) measures the displacement by counting a number of prismatic interference fringes.
Principle of RLG (Ring Laser Gyro )

What is IMU (Inertial Measurement Unit)?

Our MEMS IMU not only detects and outputs 3-axis angular velocity and 3-axis acceleration but also calculates and outputs attitude angle (roll and pitch) and azimuth angle (yaw).

Features of our IMU

  • Small size, high accuracy and low cost (Small but having accuracy of attitude angle 0.1 degrees)
  • Real-time output of behavior and attitude realized by means of advanced inertial arithmetic algorism.
  • Communication method supports RS232C and CAN
  • Detection error can be decreased by introducing external signal of GNSS, vehicle speed etc. even on a moving object such as automobile.

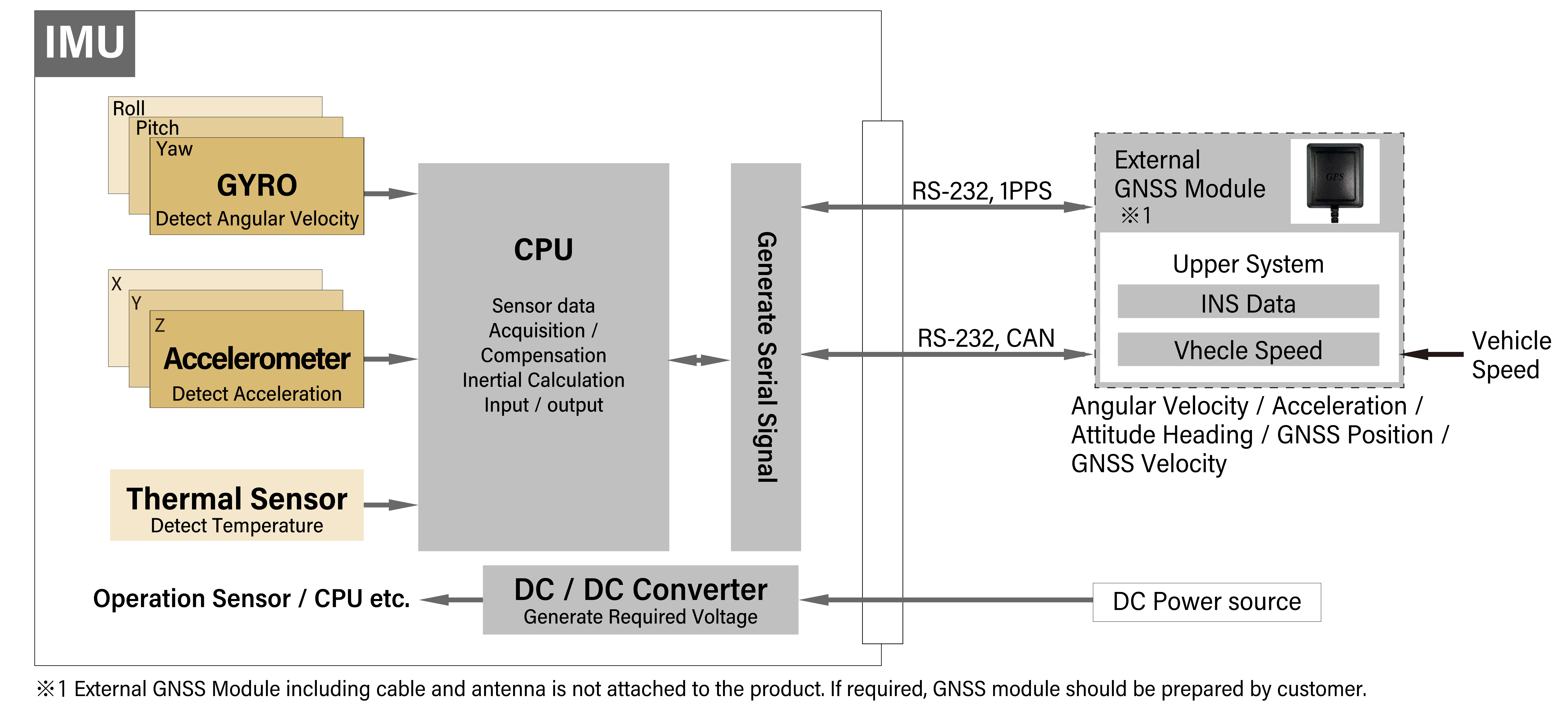

MEMS IMU Functional Block Diagram

  Functional block diagram of MEMS IMU

Lineup of IMU

Type MEMS IMU FOG & MEMS combined IMU
Built-in sensor MEMS Gyro(3 axes)
MEMS Accelerometer
MEMS Gyro(2 axes:Attitude)
FOG(1 axis:Heading)
MEMS Accelerometer
Features Small and Lightweight High Precision
Products page MEMS IMU
Products page
FOG & MEMS combined IMU
Products page

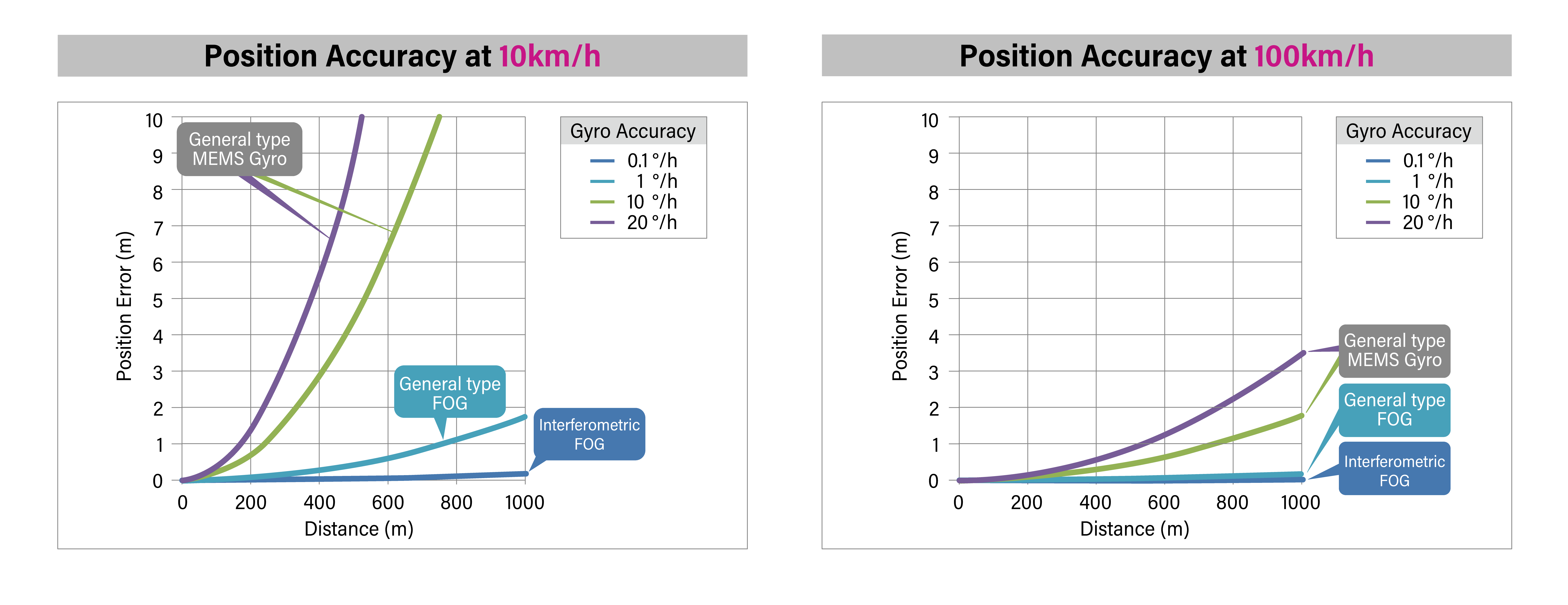

Position Accuracy by Gyro Error & Vehicle Speed

Through the use of GNSS with centimeter-level positioning accuracy, fully autonomous driving will come closer to realization.
However, the accuracy of localization is worsened in Tunnel or Multipath propagation. Gyroscope is used in those conditions.
In dead reckoning, position data is estimated by integral of gyroscope, odometer and accelerometer. Depending on the accuracy of gyroscope, errors of heading is accumulated. Therefore, high accuracy gyroscope is needed for dead reckoning.   Gyro error accuracy comparison graph


Comparing Operation Modes

Our MEMS IMU has two types of calculation methods, leveling calculation and GNSS/INS/VS, and we propose the most suitable calculation method for each application.

What is Leveling Calculation?

  • IMU calculates attitude (roll & pitch) and heading (yaw) from 3-axis of angular rate and acceleration. The feature of leveling mode is stable output of attitude angle (roll & pitch) for long hours.
  • The heading (yaw) angle is calculated by an integral of Zaxis of angular rate. It may gradually be drifted over time. It is recommended to perform offset cancel regularly to suppress heading (yaw) angle drift.
  • The leveling mode is performed on condition that the device is not moving. If the device is affected by acceleration or centrifugal force, the attitude angle may be deteriorated. This deterioration is suppressed by a compensation of GNSS and vehicle speed.

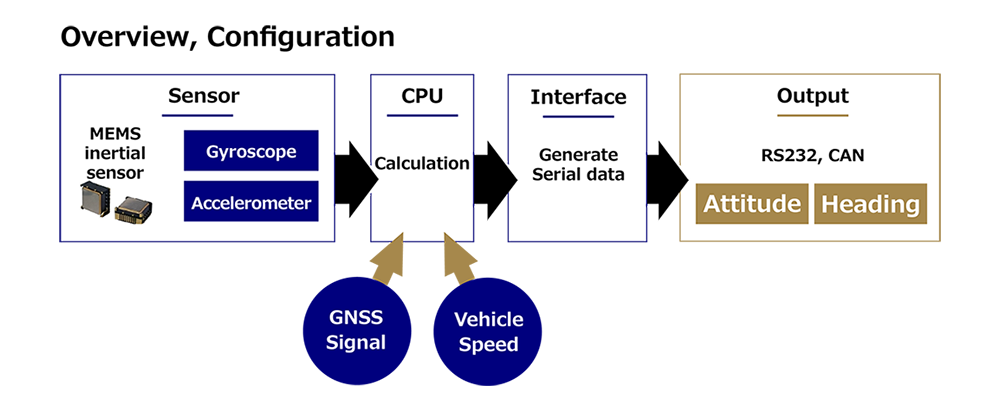

Leveling Calculation Diagram

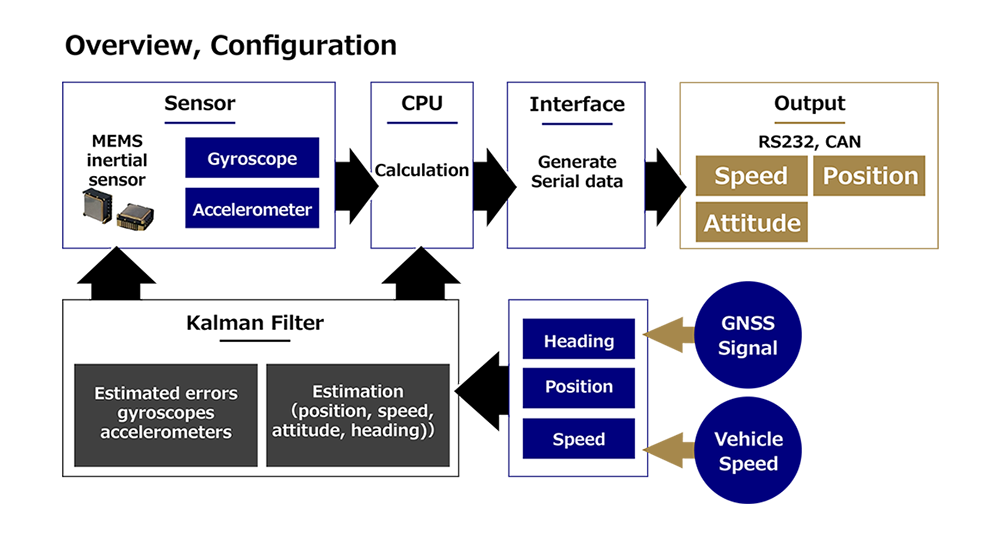

What is GNSS/INS/VS ?

  • The calculation is performed by a combination of gyroscopes and accelerometers (INS data), external GNSS data and vehicle speed.
  • The error of gyroscopes and accelerometers are estimated by a difference of INS data and GNSS/VS output. In this mode, the dynamic accuracy of attitude angle is improved. It is also possible to output the position data even in GNSS-denied environment.
  • The connection of GNSS to IMU is needed to operate this mode. If GNSS is not connected to IMU for a certain period of time, this mode may not be performed well. It is also recommended that vehicle speed be entered into IMU from external devices. The dynamic accuracy is more improved.



Please download the PDF of the leveling calculation and GNSS/INS/VS from here.



 Since World War II, there had been a lot of studies of Gyroscope under the concept of high accuracy, compact-size and light weight for the need of aircraft or missile. In those days, Attitude Gyro and Rate Gyro were the standard types of Gyroscope and often used for aircraft, missile or rocket, etc.

 Until the late 70’s, Mechanical Gyroscope was commonplace. For high-end products such as aircraft navigation system, Stable Platform Gyroscope which consists of Multi-gimbal was often used. The characteristics of Stable Platform Gyroscope is high accuracy and narrow range of angular velocity. This type of Gyroscope was called Platform Gyroscope. In 1970’s, Strapdown Gyroscope was also introduced to market. The word “Strapdown” is used in contradistinction to “Platform”, which means that detection range is wide, and attitude angle is calculated by 3 axis of angular velocity. This technology is realized by developed computer technology.

 In 1980’s, Inertial Navigation System by Strapdown Ring Laser Gyro was adopted by Boeing and Airbus. In those days, Strapdown Gyroscope was gradually increased while Platform Gyroscope was decreasing.
From 1980’s to 2000, mechanical Gyroscope was replaced by non-mechanical Gyroscope. For example, Ring Laser Gyroscope was in practical use in 1980’s, and Fiber Optic Gyroscope followed in 1990’s.
 In 1970’s, Hydrodynamic Gyroscope such as Gas Rate Gyro and Vibrating Gyroscope was actively developed in US. The accuracy of these Gyroscopes is not very high, but they are superior in operating life, environmental performance and cost. Therefore, a lot of Japanese manufacturers were interested in and focused on these Gyroscopes. Since then, Hydrodynamic Gyroscope or Vibrating Gyroscope were used for mass-produced automobile or camera and changed its image of expensiveness or short operating device. Honda, a Japanese automaker, paid an attention on Hydrodynamic Gyroscope (Gas Rate Sensor) which was initially developed for Japanese Defense program. Honda succeeded in developing low-cost & high performance Hydrodynamic Gyroscope and used them for car navigation system in early 1980’s. This achievement made an impact on Japanese industry as Gyroscope was used for general industry for the first time.

 Since then, a lot of Japanese manufacturers have focused on Vibrating Gyroscope or Fiber Optic Gyroscope. This trend would affect the development of MEMS Gyroscope later. It is considered that MEMS Gyroscope will become more common from now on. Gyroscope is facing with conversion from Military based development to Industry standard.
